Glass Bottle Line

Flow Chart of Complete Glass bottle CSD Lines

At King Machine company, we offer individual equipment or a combination of different equipment as a solution for your factory needs.

Equipped with the expertise and professionalism, We will confirm more details with you as soon as possible to offer customized solution for you .

Our company can provide 2000-50000 bph glass bottle lines for Carbonated mineral water and CSDs, Still water, Beer drniks, Sparkling water, Soda water

Water Treatment

A brand-new, fully automated water treatment production line is available for producing pure water and mineral water. It incorporates top-tier electrical components from leading European and American brands like Clarke and Siemens. This intelligent system not only saves labor costs but also allows customers to adjust the equipment to produce drinking water according to their specific requirements. It's a smart system worthy of customers' choice.

Depalletizer

Conventional depalletising systems / Automatic depalletizers steady pallet type.
The range of steady pallet depalletizers with product outfeed from the bottom is extremely flexible, and was designed to allow every user to create the most appropriate solution for their own needs.
Based on a standard central unit and customizing with different heads and accessory modules, it is possible to handle the widest range of container shapes.

Depalletizer

Technical Features
Depending on the customers’ production requirements, multi-layer and multi-pallet versions are available for the depalletizer.
The depalletized layer is fed onto the line both on chain and air conveyors.
Fully automatic system requiring limited operator intervention, operating in complete safety.
Extremely simple, complete operator control panel. Can be integrated with an advanced control and supervision system.

Output
Up to 180 layers/hour. Up to 230 layers/hour with the DSV. Up to 320 layers/hour with the DM for crates.
Products that can be processed
Crates Loose PET Bottles Loose Glass Bottles Cans Glass Jars Tin container

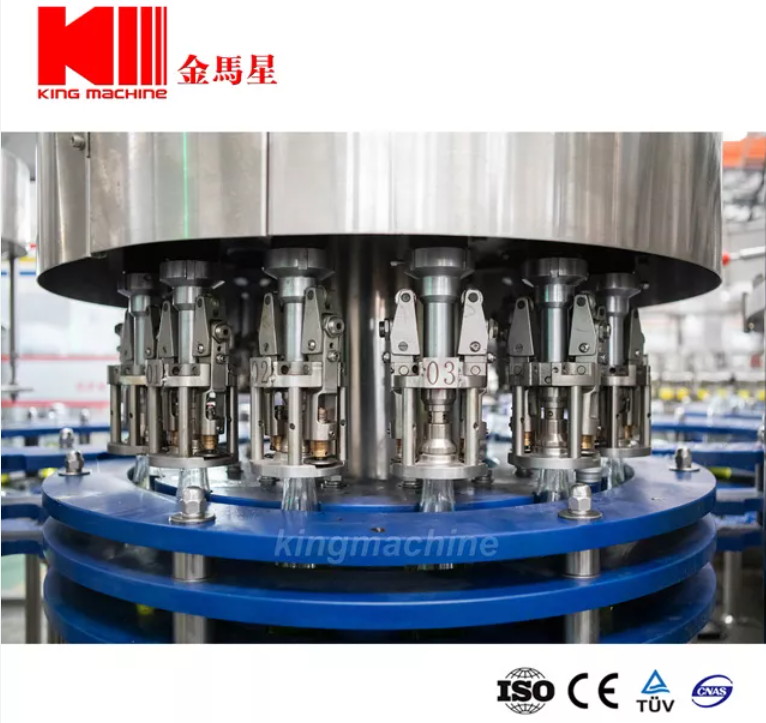

Washing Filling Capping

Products that can be processed
- Carbonated mineral water and CSDs.
- Still water.

- Beer.

Output

Fillers with from 12 to 156 valves from 2,000 to 50,000 b/hour on 0.5 litres
with CSD (5 °C).

Depalletizer

Beer Filling monoblock

Products that can be processed

Sparkling water

CSD

Soda water

Beer

Output

Fillers with from 12 to 80 valves from 1,000 to 18,000 b/hour, from 200 ml up to 1 L

Inspection

The capping/liquid level quality inspection equipment applies CCD visual inspection and DSP image processing technology, multi-sensor information fusion and precise visual positioning of high-speed moving objects, multi-level optical reflection main imaging technology and wavelet neural, visual inspection Recognition and other technologies can realize the functions of liquid level, high cover, tilted cover, broken cover, missing ring, no cover, missing code, and other quality inspections and perform the functions of rejecting defective products.

Conveyor System

Because the output of your line greatly depends on the conveying systems, KingMachine conveyors are designed around a modular mechatronic approach ensuring their reliability and adaptability to production changes. KingMachine conveyors handle a wide range of container shapes and formats in different configurations: PET or glass bottles, metal cans, beverage cartons.

Depalletizer

Easy line integration
Simple wiring to existing interfaces thanks to hybrid cabling
Compliance with most common technical standards, machine specifications and line networks
Easy integration to automation architecture centralizing line parameters
Product care
Flowing conveying preventing pressure on the products and obstructions on the line
Conveying parameters adapted to the characteristics of the container to convey
Dry or wet lubrication for a smooth conveying
Ultrasonic sensor improving line reliability compared to traditional technologies

Bottle Shrink Wrapping Machine

Packaging system has been designed with modular units, with the large majority of structural elements shared between the different models. Common packaging methods on the market are pe film packaging and carton packaging.
Within the Packaging system range, although all products have the same general characteristics, we have identified five main configurations, which are optimized for specific applications.
APPLICATIONS
Plastic Bottle Glass Bottle Cans Metal Bottle
Tetra Pak Carton Aluminum bottles

Robotic Palletizing

Conventional palletising system / Automatic palletizers steady pallet type.

Technical Features
Product infeed can be orthogonal or in line, often used for high operating speeds.
The whole range is designed to accept
a variable number of product infeeds (from 1 to 4).
All models can be integrated with the robotized Fastlayer layer preparation device.
Depending on the customers’ production requirements, multi-pallet or multi-layer versions are available.
Fully automatic system requiring limited operator intervention, operating in complete safety.
Extremely simple, complete operator control panel. It can be integrated with an advanced control and supervision system.
Possibility to handle all main pallets on the market trouble-free, with highly customizable solutions (half and quarter pallets, displays, dollies, etc.).

Depalletizer

Output
Up to 330 layers/hour.
Up to 420 layers/hour with the double mobile platform solution.
Products that can be processed
Packs
Cartons
Crates
Loose PET Bottles
Loose Glass Bottles
Cans
Tin Containers

Choose the right equipment for your beverage factory,

suitable for carbonated drinks factorys and breweries.

Beverage Pretreatment Machines

The pretreatment system is specially designed to produce juice, carbonated soft drinks, energy drinks, tea drinks, etc, which includes types of equipment, such as hot water system, sugar melting system, sugar blending system, beverage mixing system, CIP system, plate or tube UHT sterilizers.

As a long-standing supplier of various single-machines and complete-line equipments for beverage treatment to beverage companies at abroad, King Machine company can offer engineering consulting and technological design services tailored to the needs of clients, such as planning of equipment configuration, layout, process and auxiliary equipment for manufacturing shops.

Beverage Mixer (Flow Meter Type)

Operation principles: After deoxidized by vacuums system, the product water is output through pump and flow meter. After cooled water enters into the carbonation tank through mixing pump and control valve. Before entering into the tank, the mixing liquid is treated with pre-carbonization course. The CO2 content is controlled by flowrate control valve. At the moment the carbonation tank is charged with CO2 counter-pressure gas, and the sparkling water is stored in the bottom of the carbonation tank, and then pumped to the filler.

The flow meter blender is a real sense of automatic mixing. It has automatic control systems for mixing ratio, temperature, carbonization and pressure. With human-computer interface, operators can adjust the parameter values to change the CO2 content of the product. If there is any fault, it can stop and give an alarm automatically.

Labelling Machine For Glass bottle

Labeling Solution / Labeling Machine
King Machine LABELLING offers a complete range of auto-matic labelling machines for glass, plastic and metal containers, for the beverage, food, household / per-sonal care, wines/ spirits, chemical, pharmaceutical, and packaging industries.

A key mission of KingMachine Labelling is to invest in tech-nological innovations enabling end-users to maximise efficiency and reduce costs.

Efficiency, reliability and accuracy
High efficient labelling process (speed up to 50,000 BPH); Continuous production;
Easy use for the operators of the machine.
APPLICATIONS
Plastic Bottle Glass Bottle Cans Metal Bottle

Pasteurizer Tunnel

We can provide customers with a Pasteurizer Tunnel suitable for Glass bottle lines with a capacity of 3000-54000bph.

For example, for a 30000bph carbonated drink bottling line, the total treatment time is 45 minutes, the effective treatment area is 95.36 square meters, electricity power consumption is 24.25 kW, steam consumption is 1500 kg, and the cooling capacity of the cooling column is 100 m³/h.

Selected References For Canning Lines

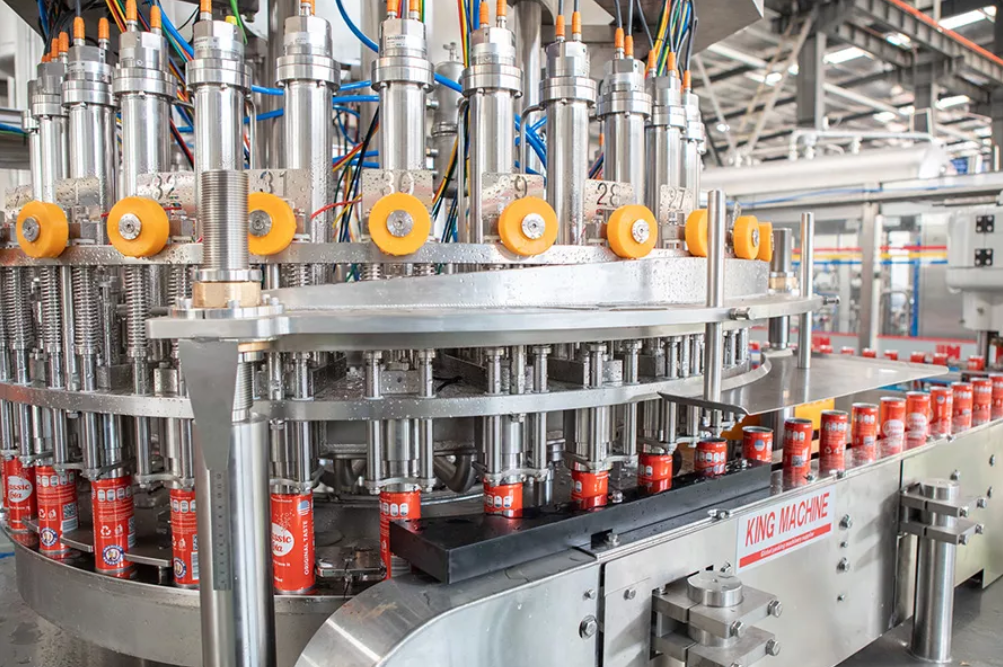

As a solutions supplier for the beverage plants, King Machine company also offers just the right canning lines solutions. Our portfolio comprises all machines from filling to Depalletizer, Filling and Capping, Inspection, labelling, packing to Robotic Palletizing. King Machine company covers an extensive output range: from 3,000 to 54,000 cans per hour.

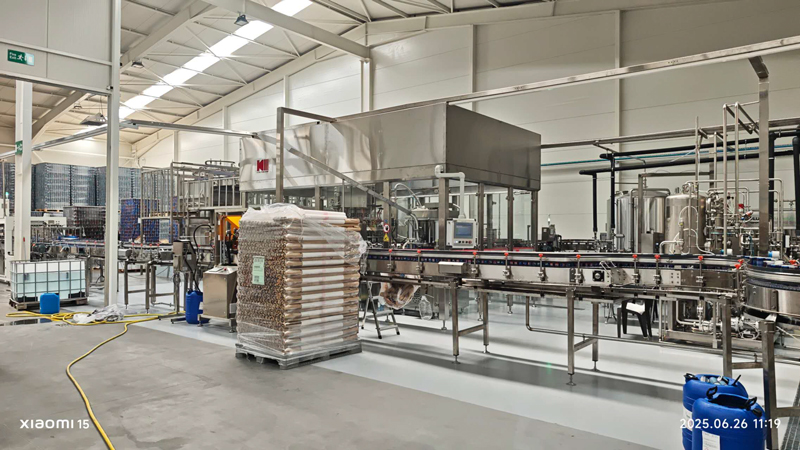

CSD lines Project Case: SOF GIGIENIK Company
Customer Project Case: SOF GIGIENIK Company Expansion Project Read More
Turnkey Project for Pap's Juice Production Line Fuels Brand Growth in Mali
In May 2023, King Machine Co., Ltd. successfully delivered an 8,000 bottles per hour (BPH) juice production line to a client in Bamako, the capital of Mali, marking Pap's Juice brand’s official entry into the local market. This turnkey project covers every step of the process from water treatment, blending, sterilization, and filling to carton packaging. The production line is equipped with auxiliary energy equipment, including a steam boiler, chiller, and air compressor, providing the client with a fully automated production line from raw materials to finished products. Read More
Juice Filling Line Project in Seoul, South Korea Successfully Progresses
Recently, a 9,000BPH juice filling production line was successfully installed and commissioned in Seoul, South Korea. This beverage filling production line, provided by the renowned equipment manufacturer Kingmachine, is specifically designed for juice beverages. Read More
